Amplificator audio DB Technologies HPA3100L

Amplificator audio DB Technologies HPA3100L

Referinta: A10DBT001

ID: 31015

0
DB Technologies

5 446,48 lei  inclusiv tva

Mail Trimis
Mail netrimis
Cere pret special!   Ai gasit acest produs mai ieftin in alta parte? Click aici!
  • Consultanta profesionista - peste 15 ani experienta
  • Livrare Rapida
  • Garantie 2 ani
  • Drept retur 14 zile
  • Transport gratuit

Informatii
Data sheet
Recenzii

Informatii

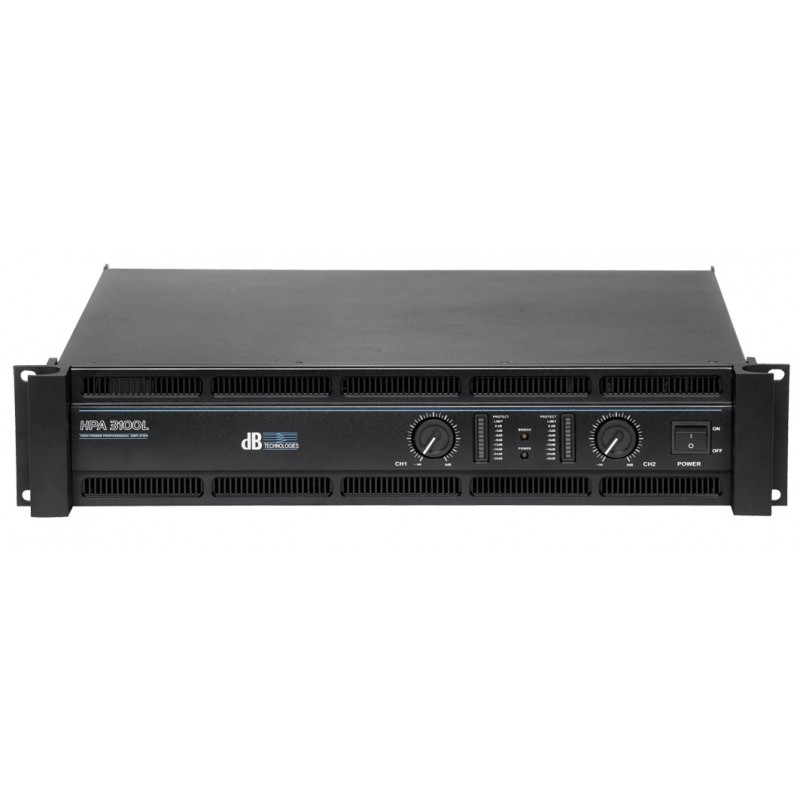

Amplificator audio DB Technologies HPA 3100 L.

dBTechnologies’ HPA series power amps deliver high performance and quality at an astonishingly affordable price.


Designed for professional use in touring racks as well as for fixed installation, the series comprises four Class-(HD) models that deliver 2x 1200 W/RMS

Featuring Class-(HD) technology with and weighing just 14 kg, the flagship HPA 3100 L power amp delivers up to 3400 W/RMS output.

It comes with a PFC switched-mode power supply.

Engineered for utmost ease of use, these amps offer connection options - XLR inputs for patching in signals as well as Speakon ports for connecting speaker systems.

What’s more, their extensive protective circuits ensure reliable, safe operation.

Technical Data
Type: Amplifier
Acoustical data
Power RMS @ 2 ohms: 2x 1700 W/RMS
Power RMS @ 4 ohms: 2x 1200 W/RMS
Power RMS @ 8 ohms: 2x 800 W/RMS
Power Bridged RMS @ 8 ohms: 1x 2400 W/RMS
Power bridged RMS @ 4 ohms: 1x 3400 W/RMS
Frequency Response: 20 - 20.000 Hz
THD @ 1 kHz: 0.05 %
Damping Factor @ 8 ohms: >1000
Slew Rate: 55 V/µs
SN Ratio: 108 dB
Limiter: Internal, switchable
Cooling: Temp.controlled fan
Amplifier
Processor
Input
Signal Input: 2x XLR
Signal Output: 2x XLR
Input Sensitivity [dBu]: 26, 32 dBu
Input Sensitivity [V]: 1.4 V
Input Impedance: 20 kohms
Output Connector: 2x Speakon
Mechanics
Housing: Metal
Installation Standard: 2 HU
Rack Size: 19 HU
Handles: 2x On Front
Width: 482 mm (19.28 in)
Height: 89 mm (3.56 in)
Depth: 402 mm (16.08 in)
Weight: 14 kg (30.86 lbs)

Putere in punte (W) : 1x2400/8ohm; 1x 3400 /4ohm
Putere garantata (W) : 2x1200
Raspuns in frecventa (Hz) : 20-20000
Dimensiune (mm) : 482x89x420
Greutate (kg) : 14
Unitate vinzare : buc

Data sheet

Raspuns in frecventa (Hz)20.00
Putere garantata (W)2.00
Putere in punte (W)1.00
Dimensiune (mm)482.00
