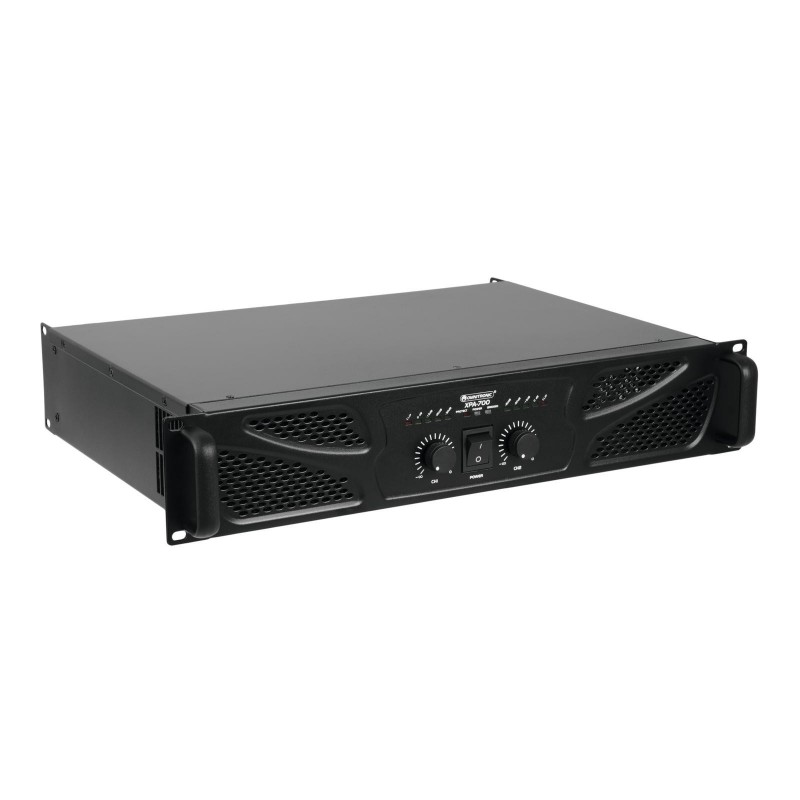

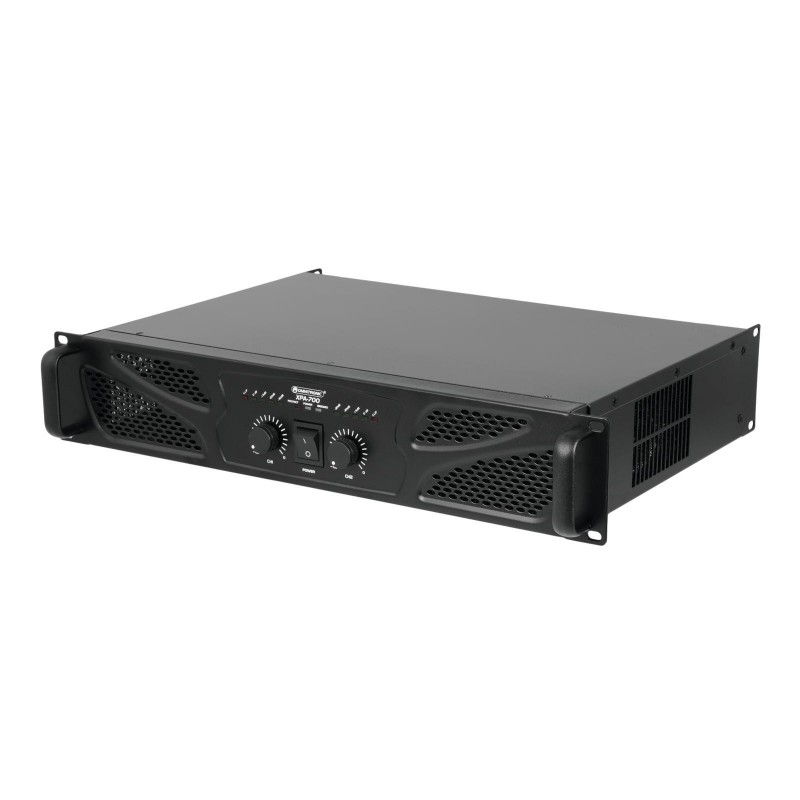

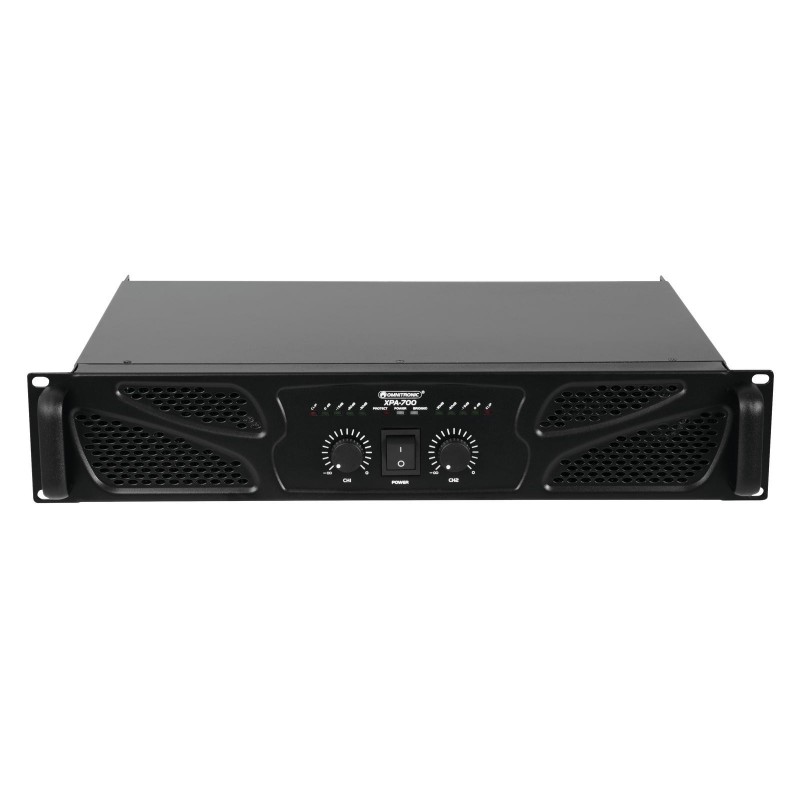

Amplificator audio OMNITRONIC XPA-700
[10451032]

ID: 38746

Garantie: 24 luni

Transport gratuit

969,35 lei  inclusiv tva



Mia multe informatii

Amplificator audio OMNITRONIC XPA-700.

PA amplifier with integrated limiter

  • 2 operating modes can be selected (stereo or bridged)
  • Limiter, switchable
  • Speaker switch-on delay
  • 2 level controls
  • Each channel with LED for activated protective circuit (protect) and output meter with clip LED
  • Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
  • Groundlift switch against humming
  • Fan cooling
  • Signal inputs via XLR or 6.3mm jack connectors
  • Speaker outputs via lockable speaker jacks and pairs of screw terminals
  • Additional Speaker plug for 8-ohm bridge operation
  • Class AB circuitry
  • Rack installation with 2 units
Power supply:115/230 V AC, 50/60 Hz
Power consumption:495 W (1/8 power)
Power output sine:
Stereo 4 ohms2 x 350 W
Stereo 8 ohms2 x 240 W
8 ohms bridged1 x 700 W
Frequency range:20-20000 Hz, ± 1 dB
Damping factor:>350
Distortion factor:0.5 %
Slew rate:20 V/µsec
S/N ratio:>95 dB
Input sensitivity:1.4 V
Input impedance:20 kohms (balanced), 10 kohms (unbalanced)
Input voltage:max. 21 dBV/9V

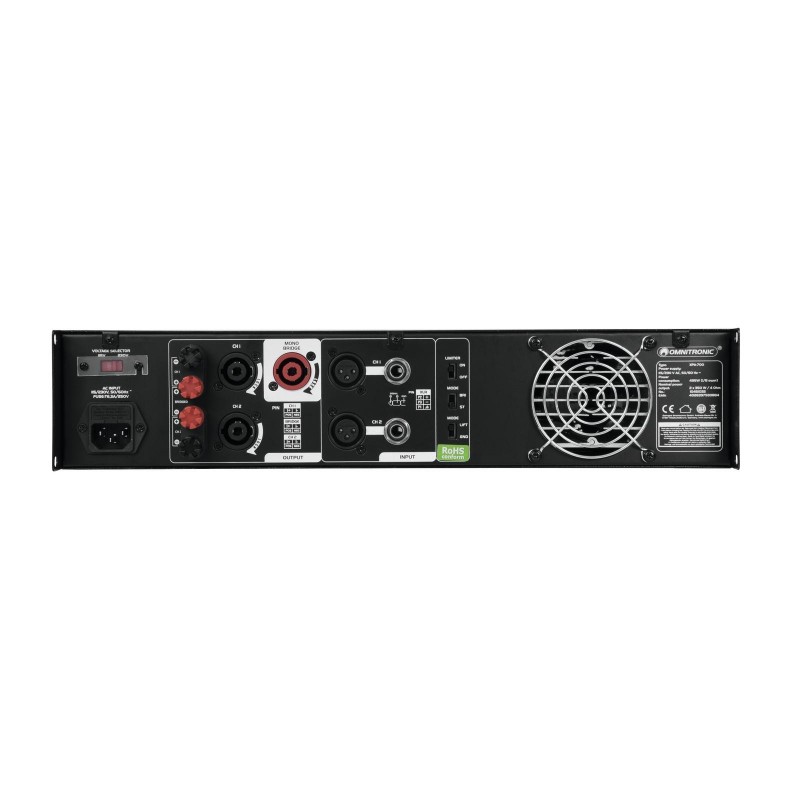

Input connectors:2 x XLR, 2 x 6.3 mm jack
Output connectors:2 x speaker, 1 x speaker (bridge), 2 x pairs of screw terminals
Control elements:power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector
LED indicators:bridged, protect, and 5-fold output meter with clip LED (per channel)
Protection circuits:short-circuit, overheat, DC voltage, power on/off transients, softstart
Construction:steel chassis with aluminum front panel
Dimensions (DxWxH):354 x 483 x 103 mm (19", 2 U)
Weight:9 kg
Shipping weight:11.10 kg



Unitate vinzare : buc

Manual PDFManual PDF
