Set lavaliera wireless Audio-Technica ATW-3211/899

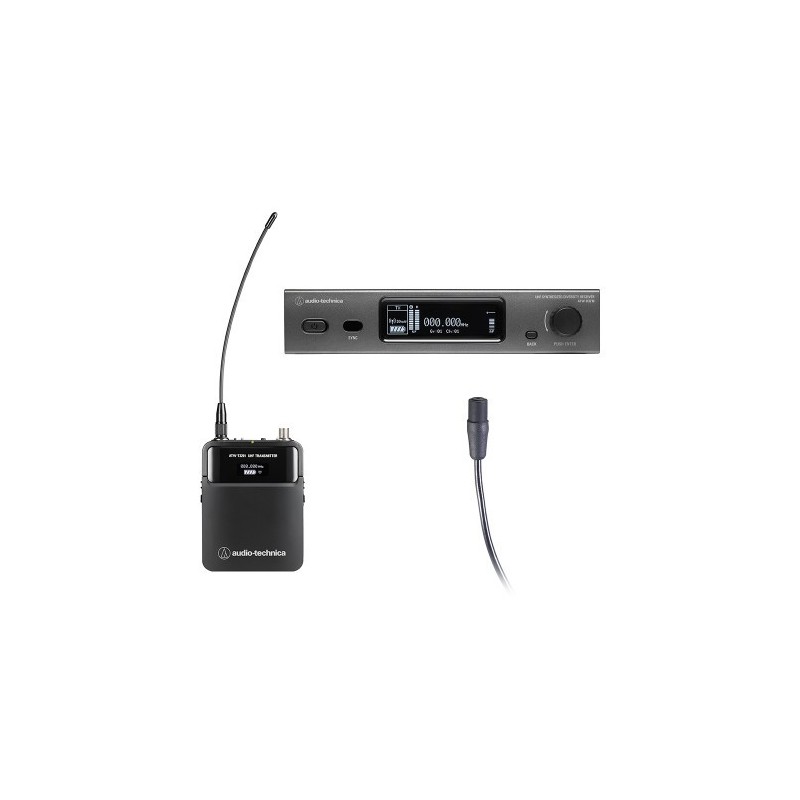

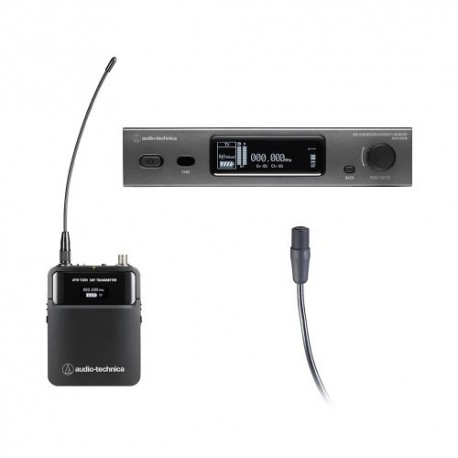

3000-series - Body-pack System with AT899cH

  • 60 MHz UHF tuning bandwidth in each of 6 available frequency bands
  • Unique multifunction button to switch to a backup frequency
  • Frequency scan and IR sync functionality for ease of setup

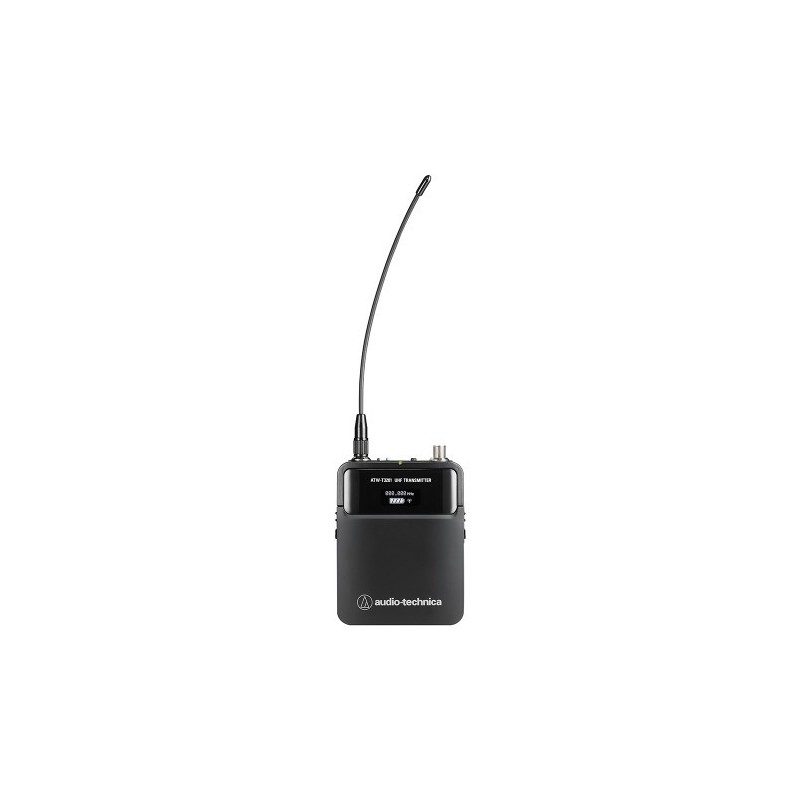

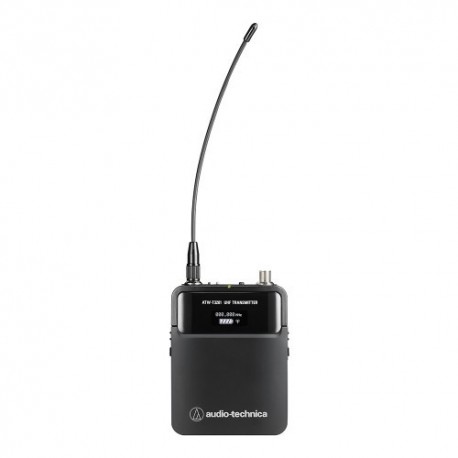

  • Body-pack transmitter features tactile mute toggle switch
  • Charging terminals on transmitter to recharge NiMH batteries
  • AT899cH subminiature omni condenser lavalier microphone

Overall System
Operating FrequenciesBand DE2: 470.125 to 529.975 MHz
Band EE1: 530.000 to 589.975 MHz
Band EF1: 590.000 to 649.975 MHz
Band FG1: 650.000 to 699.875 MHz
Band GH2: 794.100 to 805.900 MHz
Band HH2: 821.100 to 831.900 MHz and 863.100 to 864.900 MHz
Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.
Minimum Frequency Step25 kHz
Modulation ModeFM
Maximum DeviationATW-T3201: ±38 kHz (THD:10%)
ATW-T3202: ±36 kHz (THD:10%)
Simultaneous Use40 Channels per band*
For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent
Frequency ResponseATW-T3201: 31 Hz to 15500 Hz
ATW-T3202: 25 Hz to 16700 Hz
Operating Range100 m
Dynamic RangeATW-T3201 Mic input: > 115 dB (A-weighted), typical
ATW-T3201 Inst input: > 112dB (A-weighted), typical
ATW-T3202: > 115 dB (A-weighted), typical
Total Harmonic Distortion<1.0% (at 1 kHz, ±17.5 kHz deviation)
Operating Temperature Range-5 ºC to +45 ºC

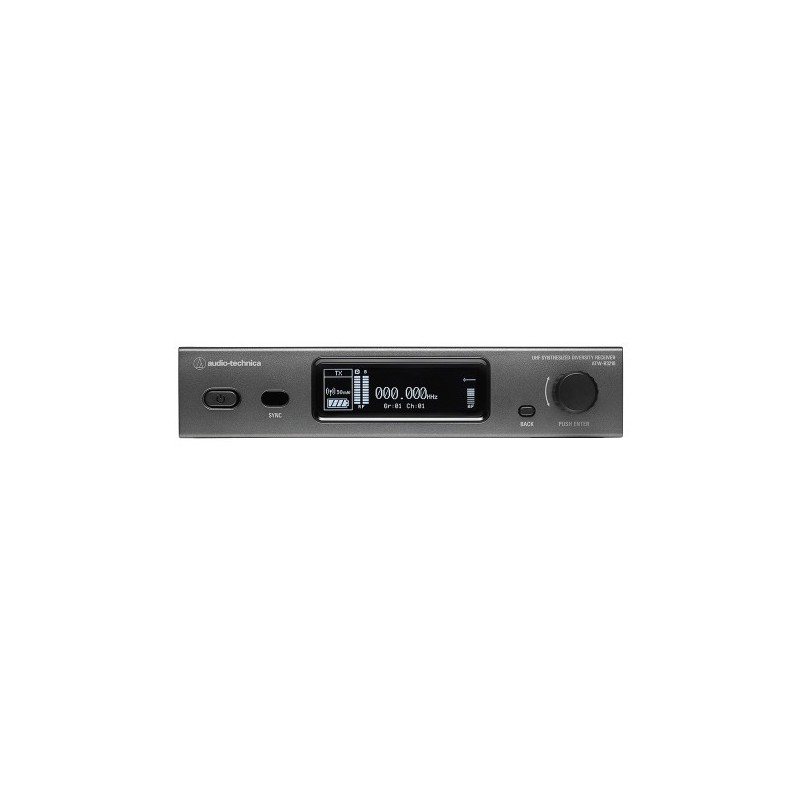

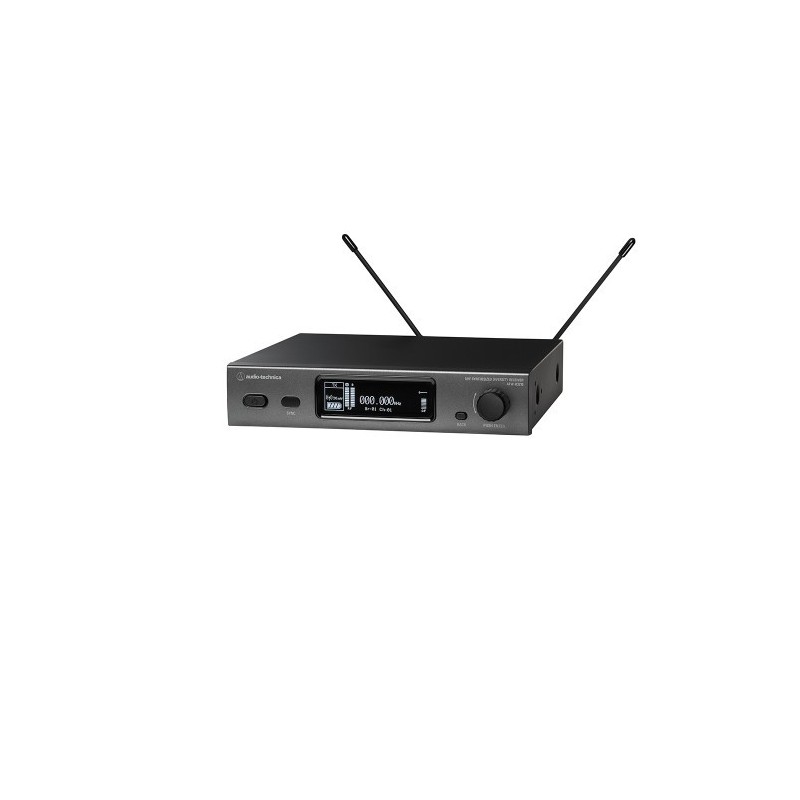

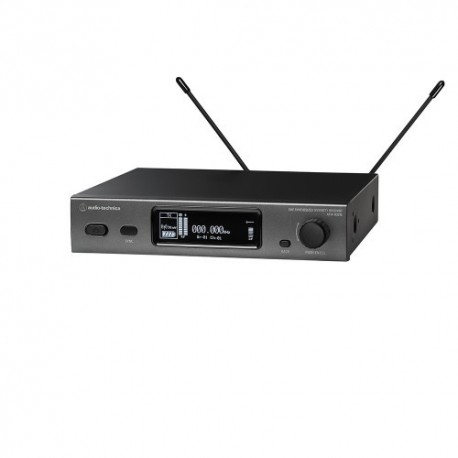

Receiver
Receiving SystemTrue Diversity
Sensitivity20 dBuV at 60 dBA S/N ratio (50⦠termination)
Maximum Output LevelXLR / Balanced: +14 dBV
6.3 mm (¼"") / Unbalanced: +8 dBV
Antenna InputBNC-type, 50 Ω
Power Output12 V DC, 160 mA (combined)
Power Supply100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions210.0 mm x 191.0 mm x 43.4 mm (W x H x D)
Weight1100 g, without accessories
Accessories IncludedTwo Flexible UHF antennas
AC adapter (country dependent)
Rack Mount Adaptors
Belt Pack
RF Power OutputHigh: 30 mW, Low: 10 mW (switchable), at 50 Ω
Spurious EmissionsFollowing Federal and National Regulations
Input Connections4-Pin screw down cH-Style Connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +5V
Battery TypeTwo 1.5V AA, not included
Battery LifeHigh: 8.0 hours / Low: 9.0 hours (alkaline)
High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh)
Depending on battery type, usage and environmental conditions.
Dimensions64 mm x 82 mm x 23 mm (W x H x D)
Net Weight102 g
Microphone
ElementFixed-charge back plate permanently polarized condenser
Polar PatternOmnidirectional
Weight0.5 g
Output Connector4-Pin cH-Style screw down connector
Cable1.4 m long (permanently attached to microphone), 2.0 mm diameter, 2-conductor, shielded cable with screw-down 4-pin cH-style connector
Accessories IncludedAT8439 cable clip; clothing clip base; viper clip base; magnet clip base and plate with lanyard; three single mic holders; two double mic holders; two element covers; two windscreens; protective carrying case
ElementFixed-charge back plate permanently polarized condenser
Polar PatternOmnidirectional
Frequency Response20 - 20,000 Hz
Open Circuit SensitivityPhantom: -43dB (7.0mV), re 1V at 1 Pa
Battery: -46dB (5.0mV), re 1V at 1 Pa
ImpedancePhantom 200 Ω - Battery 250 Ω
Maximum Input Sound LevelPhantom: 138 dB SPL, 1 kHz at 1% T.H.D. - Battery: 116 dB SPL, 1 kHz at 1% T.H.D.
Low Frequency Roll Off80 hz, 12 dB/octave
SwitchesFlat, roll-off (recessed)
Dynamic RangePhantom: 108dB,1 kHz at max SPL - Battery: 86dB,1 kHz at max SPL
Signal-to-Noise Ratio64dB,1 kHz at 1 Pa
Phantom Power Requirements11- 52V DC, 2 mA typical
Battery Type1.5V AA-UM3
Battery Current/Life0.4 mA typical / 1200 hours (alkaline battery)
WeightMicrophone 0.5 g - Power module 102 g
DimensionsMicrophone 16.0 mm long, 5.0 mm diameter - Power Module 145.0 mm long, 21.0 mm diameter
Output ConnectorIntegral 3-pin XLRM-type
Cable3.0 m long (permanently attached to microphone), 2.0 mm diameter, 2-conductor, shielded cable with TA3F output connector that mates with TB3M jack on power module
Accessories IncludedAT8537 power module; AT8439 cable clip; clothing clip base; viper clip base; magnet clip base and plate with lanyard; three single mic holders; two double mic holders; two element covers; two windscreens; battery; protective carrying case
