Set wireless cu receiver si 1 microfon, Omnitronic UHF-301 823-832/863-865MHz
[13063300]

ID: 45530

Garantie: 24 luni

Transport gratuit

567,84 lei  inclusiv tva



Mia multe informatii

Set wireless cu receiver si 1 microfon, Omnitronic UHF-301 823-832/863-865MHz

1-channel UHF PLL microphone system



  • 1-channel multifrequency receiver unit and hand-held microphone with UHF PLL technology
  • Operation in the license-free frequency ranges 823-832 MHz and 863-865 MHz
  • 93 preset channels in 10 channel groups
  • Operation range with line of sight approx. 60 meters
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • LCDs for group, frequency and channel
  • LEDs for carrier and audio signal
  • Volume control
  • Balanced XLR output
  • Unbalanced 6.3 mm jack
  • Jack cable included
  • Removable antenna (BNC connection)
  • Incl. mounting brackets for 483 mm rack installation
  • 1 dynamic microphone with cardioid polar pattern and LCD for battery capacity and frequency
  • Matching pocket transmitter can be ordered separately
  • License-free and approved in large parts of the EU (please check on a country-by-country basis)

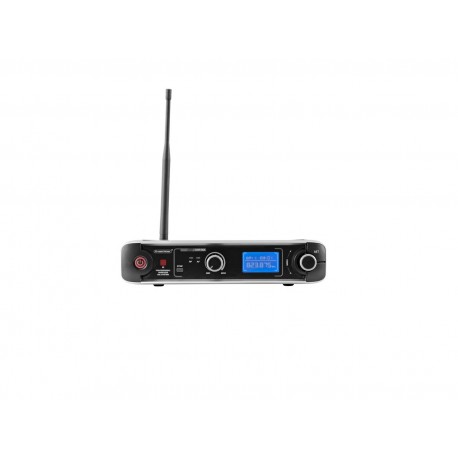

Receiver

  • Height unit: 1 U
  • Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
  • Housing design: (19") 48,3 cm rack installation possible

Microphone

  • Battery: 2 x Mignon (AA) (not included)
  • Mute function: No
  • Polar pattern: Unidirectional
  • Power connection: Battery/battery pack (not included)



System:Non-diversity, 1 channel
Carrier frequency:823-832 MHz and 863-865 MHz
Receiving frequencies:93
Coverage:60 m (with line-of-sight)
RF power output:10 mW
Modulation method:FM
Frequency stability:10 ppm
Sensitivity:6 dBµV
S/N ratio:>80 dB
Frequency range:50-18000 Hz (±3 dB)
T.H.D.:<0.5 % at 1 kHz
Audio outputs:
Mic:XLR, bal.
Mix:6.3 mm jack, unbal.
Power supply:
Receiver:100-240 V AC, 50/60 Hz via supplied power unit
Current consumption:130 mA
Frequency band:UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency range:50 - 18,000 Hz
Weight:1,51 kg
Receiver
Width:21 cm
Depth:23,5 cm
Height:4,7 cm
Power consumption:4 W
Power connection:Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m)
Material:Metal
Power supply:110-240 V AC, 50/60 Hz
12 V DC 350 mA
Microphone
Length:25 cm
Diameter:5,2 cm
Battery:2 x Mignon (AA)
Polar pattern:Unidirectional
Power connection:Battery/battery pack
Material:Plastic
Weight:0,23 kg
