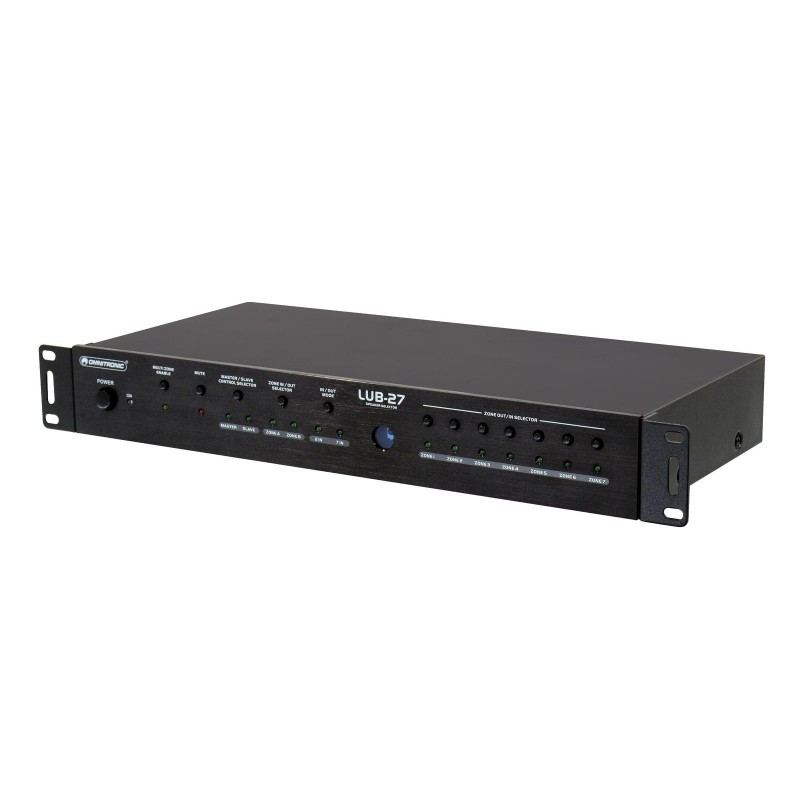

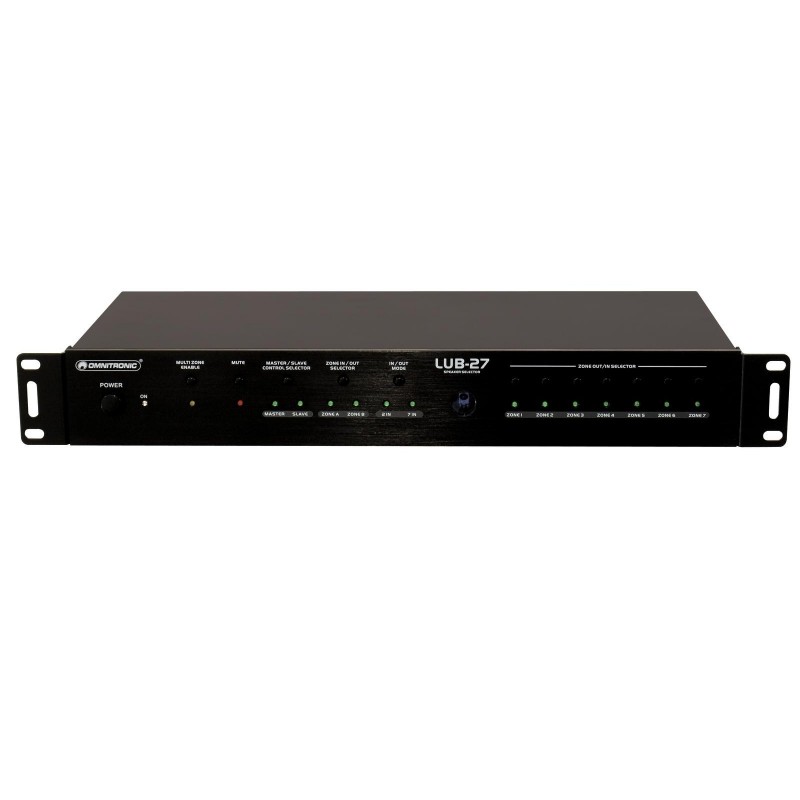

Speaker switch box Omnitronic LUB-27

Speaker/amplifier switch box with IR remote control


  • 7-channel switch box for speaker pairs or amplifiers
  • Ideal for showrooms for comparing the performance of different speakers or amplifiers
  • Operating mode 1: switching over on 7 speaker pairs to 2 stereo amplifiers with A/B selection
  • Operating mode 2: switching over on 7 stereo amplifiers to 2 speaker pairs with A/B selection
  • Multi-zone function also allows for freely combining the 7 speaker pairs in operating mode 1
  • Parallel connection of 2 units for extension to 14 zones possible in operating mode 1, connection cables optional
  • High-power audio signal transmission, power rating: 25 A per channel
  • LED indicators for each status
  • Mute function
  • Automatic recall of last-used settings after switching on

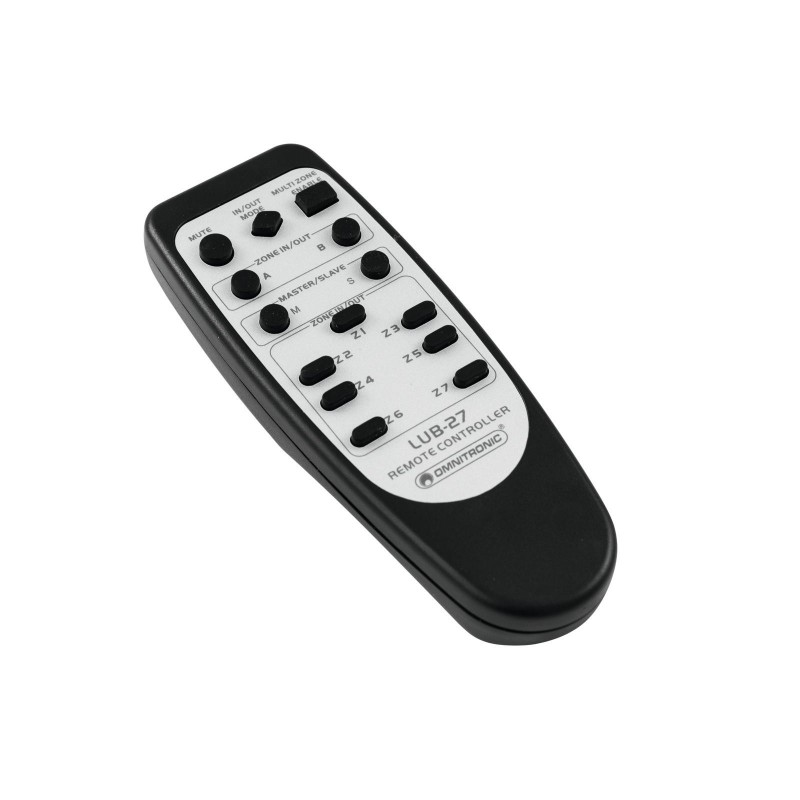

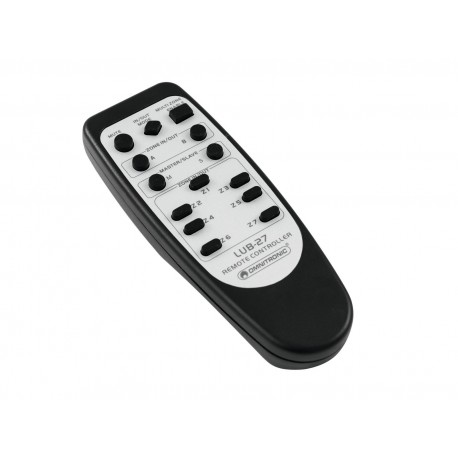

  • Incl. IR remote control
  • Optional extension IR receiver

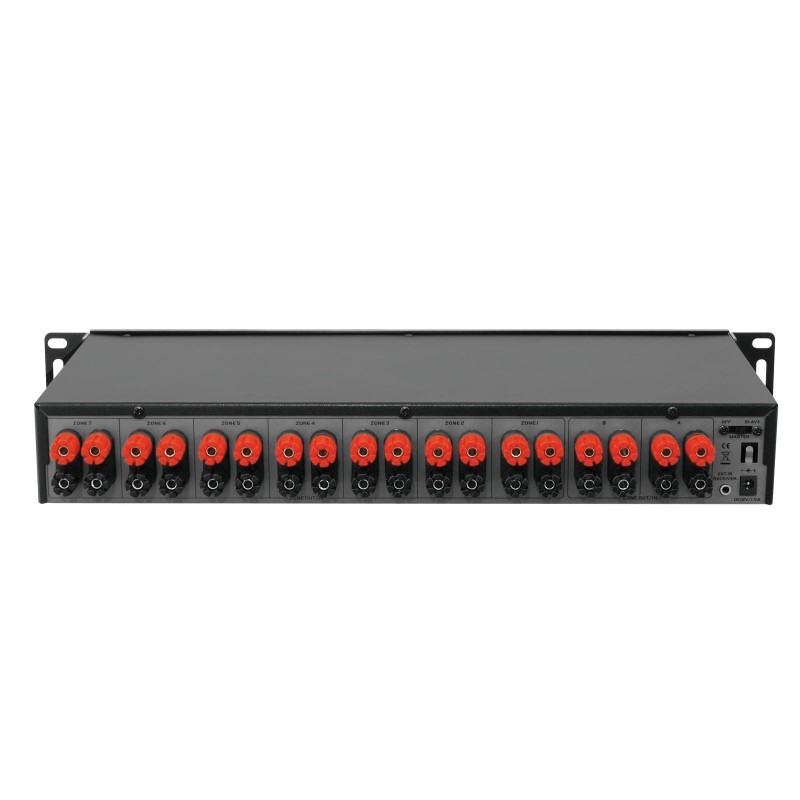

  • Connections via pairs of screw terminals
  • Black metal housing with aluminum front panel
  • Operation via supplied switch mode power unit
  • Rack installation, 2 U





Power supply: 100-240 V AC, 50/60 Hz
 via supplied power unit 12 V/1.5 A
Power consumption:30 W
Rated power:25 A per channel
Connectors:pairs of screw terminals
Remote control:2 x 1.5 V micro batteries (type AAA)
Coverage:10 m
Extension connection:3.5 mm jack
Dimensions (LxWxH):482 x 220 x 78 mm (19", 2 U)
Weight:3.2 kg
Shipping weight:5.05 kg


Dimensiune (mm) : 482 x 220 x 78
Greutate (kg) : 3.2
Unitate vinzare : buc

Manual PDFManual PDF

Data sheet

Dimensiune (mm)482.00
