Modul sunet sintetizator, Behringer 911 Envelope Generator

Modul sunet sintetizator, Behringer 911 Envelope Generator

Detalii

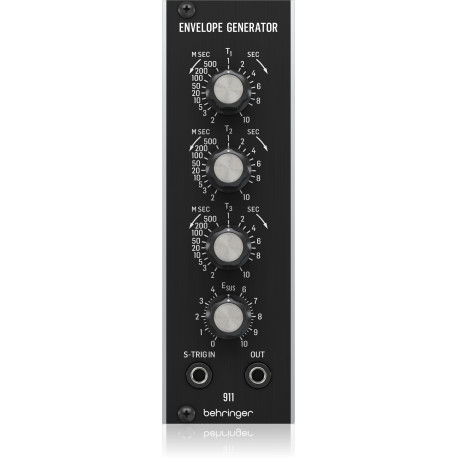

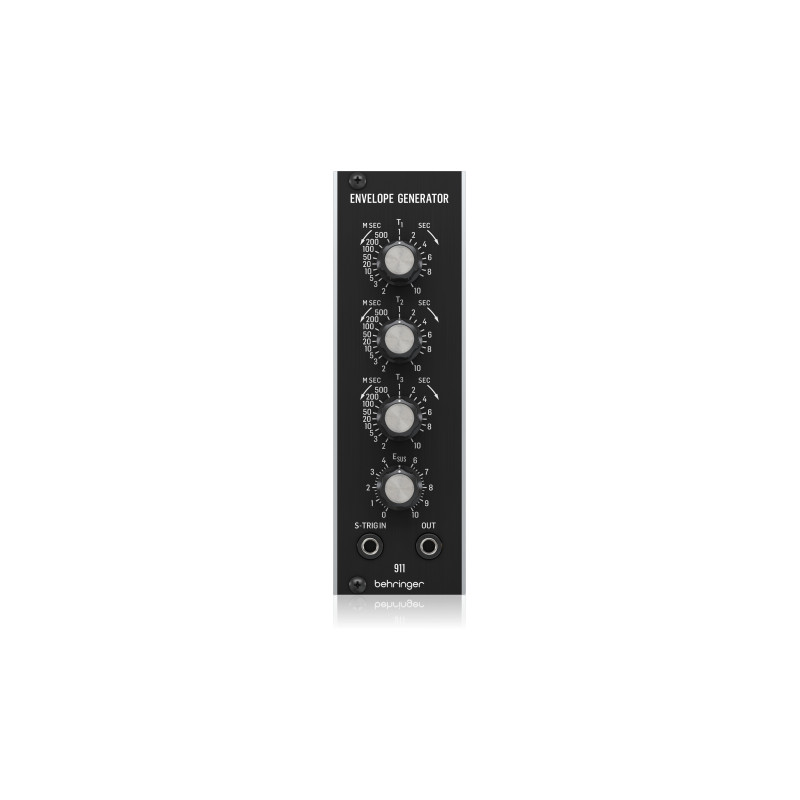

Modul Sunet Sintetizator Behringer 911 Envelope Generator

• Modul Envelope Generator 911 ADSR anii '70
• Reproducere autentica a circuitelor originale seriei "Modular 55, 35 & 15"
• Registru artisiti celebrii pop, rock si jazz
• Conectori Trigger in si CV out pentru integrarea cu alte module
• 4 controale independente T1 (attack), T2 (decay), T3 (release) si sustain
• Control total al semnalului envelope
• Intervale timp 2 ms - 10 sec
• Eurorack: 8 HP, 30 mA +12 V, 30 mA -12 V
• IN 3.5 mm jack, DC cuplat
• Impedanta 5 kΩ, nebalansat
• Max input level +10 V
• OUT 3.5 mm jack, DC cuplat
• Impedanta> 200 Ω nebalansat
• Banda iesire 0 V - +6 V DC
• T1 (Attack) 2 ms - 10 s
• T2 (Decay) 2 ms - 10 s
• T3 (Release) 2 ms - 10 s
• (Sustain) 0 V - +5.5 V DC
• Alimentare Eurorack
• Consum 30 mA (+12 V),30 mA (-12 V)
• Dimensiuni 35 x 40 x 129 mm
• Greutate 0.09 kg
