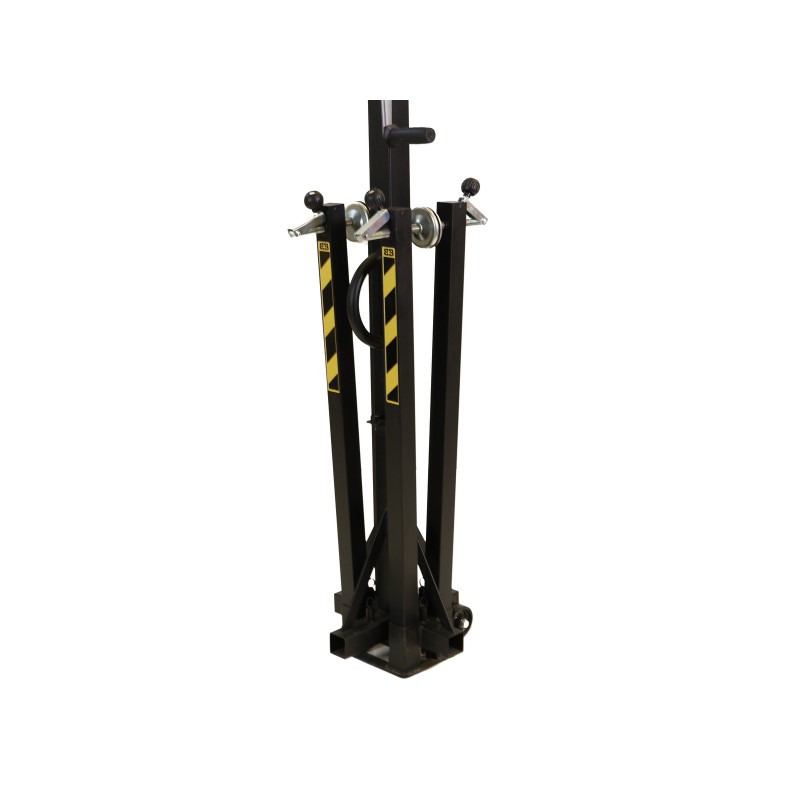

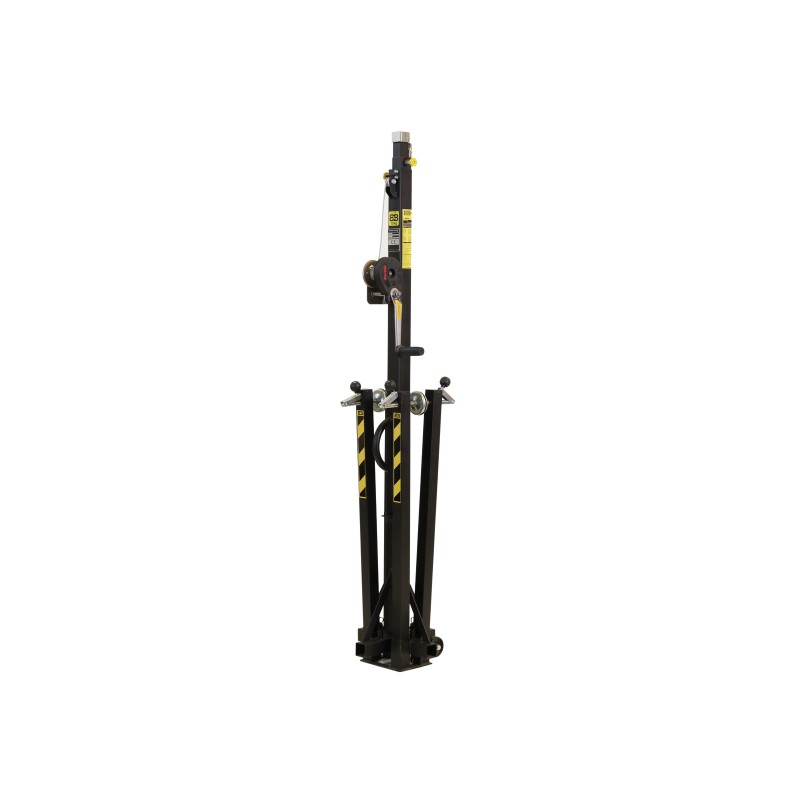

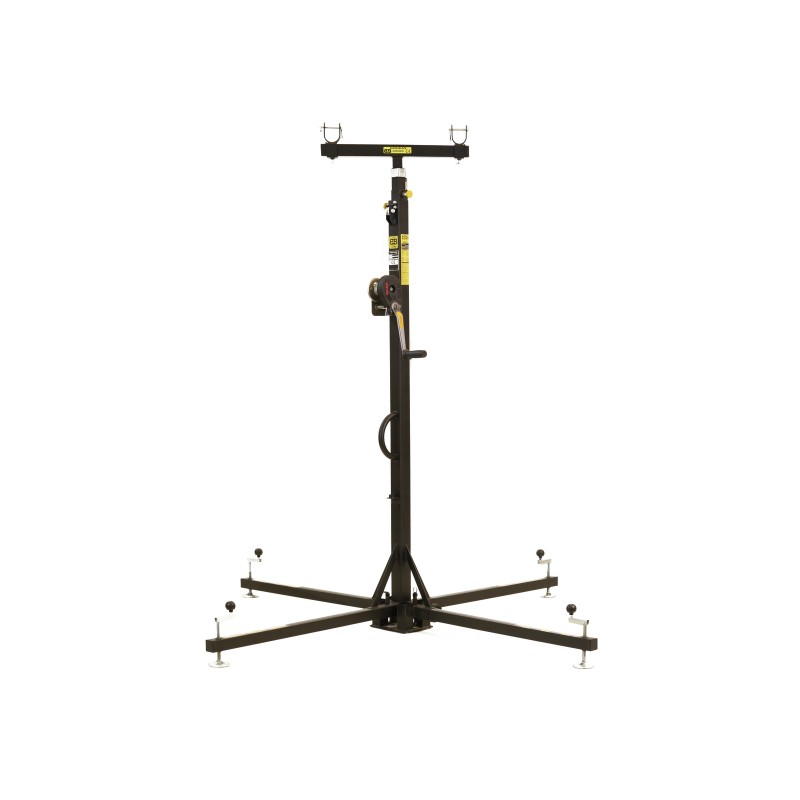

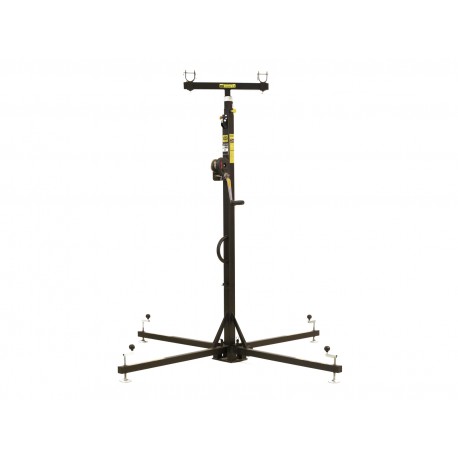

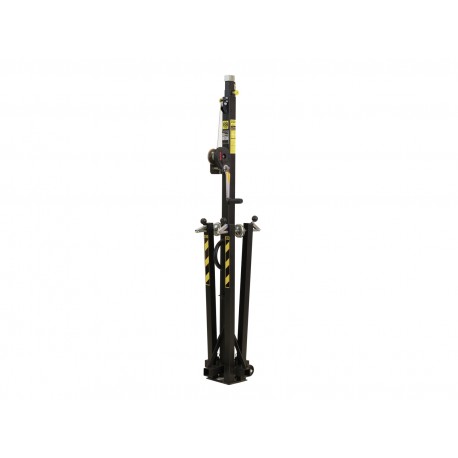

Trepied cu macara BLOCK AND BLOCK SIGMA-50
[59000408]

ID: 46954

Garantie: 24 luni

Transport gratuit

Trepied cu macara BLOCK AND BLOCK SIGMA-50

4 755,00 lei  inclusiv tva



Informatii

High-quality ground support for weights up to 120 kg, made in EU

  • Three-part telescopic ground support
  • 4 mm steel rope
  • Safety bolts to lock the different sections at different heights
  • Locking bolts in the base area to lock the booms
  • Booms with adjustable spindle and steel plate with non-slip rubber base
  • Corrosion protection through epoxy coating
  • Water level to ensure a vertical position
  • Earthing connection
  • Transport rolls to move the lift when retracted

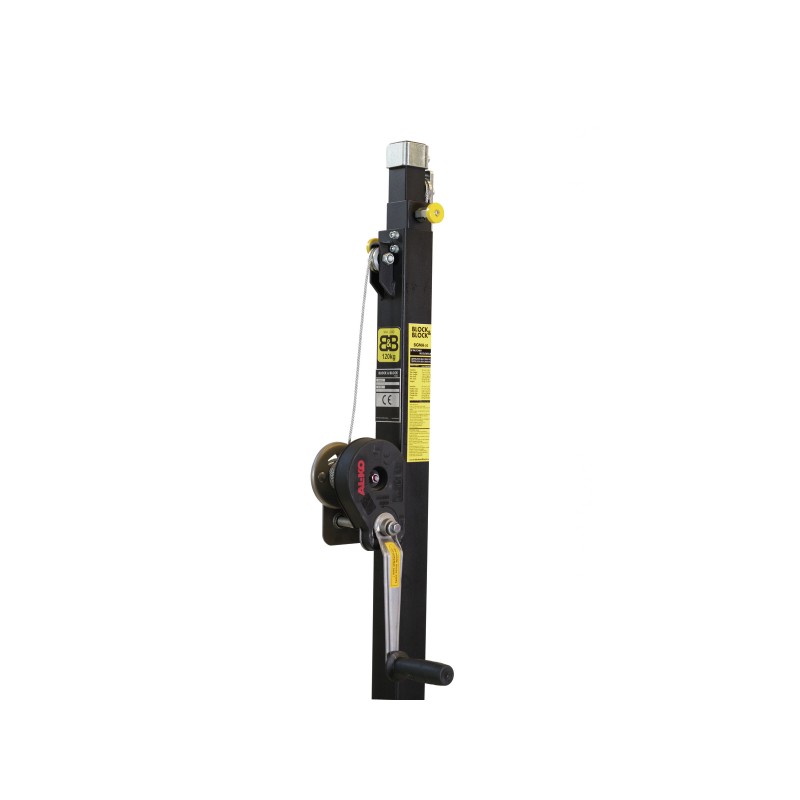

  • AL-KO 351 PLUS winch: Maximum load 350 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
  • Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
  • Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
  • Made in Europe
Technical specifications
Maximum carrying capacity:120 kg
Minimum load:25 kg
Nominal tensile strenght of rope:1770 N/mm²
Height:maximum: 5,00 m above 3 sections
minimum: 1,90 m
Attachment:Flange system 35mm
Steel rope:4 mm
Base area diameter:2,06 m
Transport dimensions:0,38 x 0,38 x 1,9 m
Material:Steel (powder-coated)
Weight:33,50 kg
