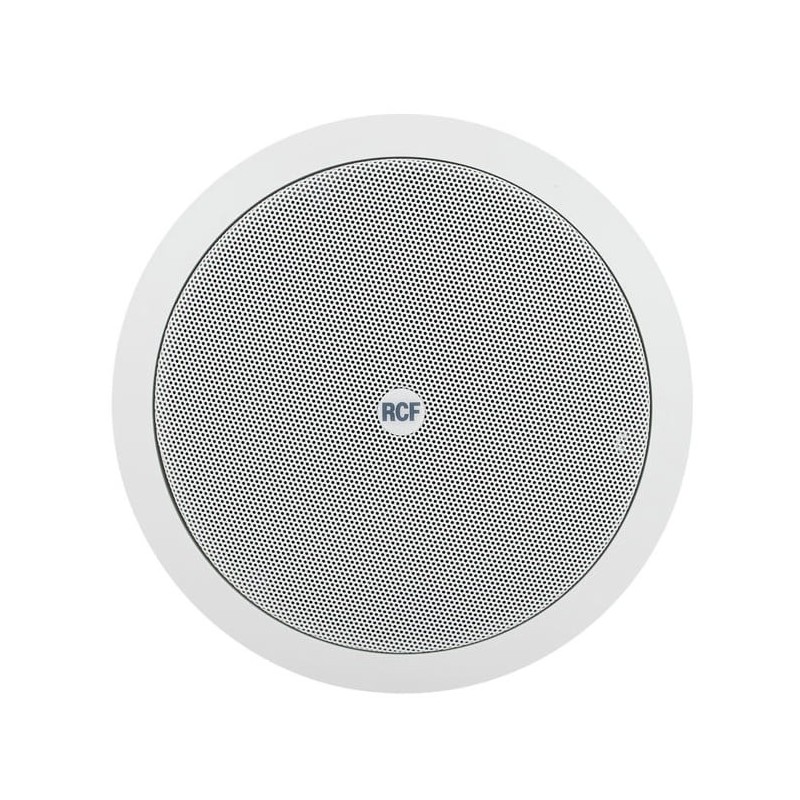

Difuzor de plafon 100V EN-54 RCF PL60FD

ID: 43837

Garantie: 24 luni

217,96 lei  inclusiv tva



Mia multe informatii

Difuzor de plafon 100V EN-54 RCF PL60FD

Difuzor de plafon rezistent lai ncendiu.



The PL 60FD ceiling speaker can insulate itself from the line in case of fire.
Thanks to its ceramic termination blocks (capable of withstanding temperatures in excess of 650° C/202 °F), its thermal fuse ( threshold: 150 °C/ 302 °F) and its fire-resistant cable, the speaker does not allow fire to move to the audio system.
It is ideal for the reproduction of announcements and background music and features a 4 position manual switch) to select the speaker power.



  • Expecially suitable for alarm/evac applications
  • 6" dual cone wide band loudspeaker
  • Sound pressure level at music power: 105 dB/1 m
  • Low impedance (8Ω) or 100V
  • Built-in multi-tapped transformer for 100/70V constant voltage connection
  • Metal back cover, RAL 3020 red
  • Ceramic termination blocks, thermal fuse, fi re resistant cable
Acoustical Specifications
  • Type of speaker: Ceiling
  • Frequency Response: 150 Hz ÷ 15 kHz
  • Max SPL @ 1m: 105 dB
  • Horizontal coverage angle: 150°
  • Vertical coverage angle: 150°
  • Power Handling: 6 W RMS
  • Peak Power Handling: 10 W PEAK
  • System Sensitivity: 94 dB
  • Impedance: 8 Ω
Transducers
  • Speaker: 6"
Input Section
  • Input connector: Ceramical terminal block
  • Constant voltage: 100 V / 70 V
  • Power Selection: 6 - 3 - 1.5 W (100 V)
Cabinet
  • Hardware: Metal back cover
  • Colour: White
  • Grille: Steel
Physical Specifications
  • Height: 150 / 5.90 mm/inch
  • Width: 230 / 9.05 mm/inch
  • Depth: 230 / 9.05 mm/inch
  • Net weight: 1.5 / 3.30 kg/lbs
Shipping information
  • Package height: 170 / 6.69 mm/inch
  • Package width: 260 / 10.23 mm/inch
  • Package depth: 260 / 10.23 mm/inch
  • Shipping weight: 2.1 / 4.62 kg/lbs
Applications
  • • Shopping centres
  • • Sport centres
  • • Corridors
  • • Voice Alarm PA systems

Data sheet

Putere maxima (W)10.00
Raspuns in frecventa (Hz)150.00
Sensibilitate (dB)94.00
Dimensiune (mm)150.00
