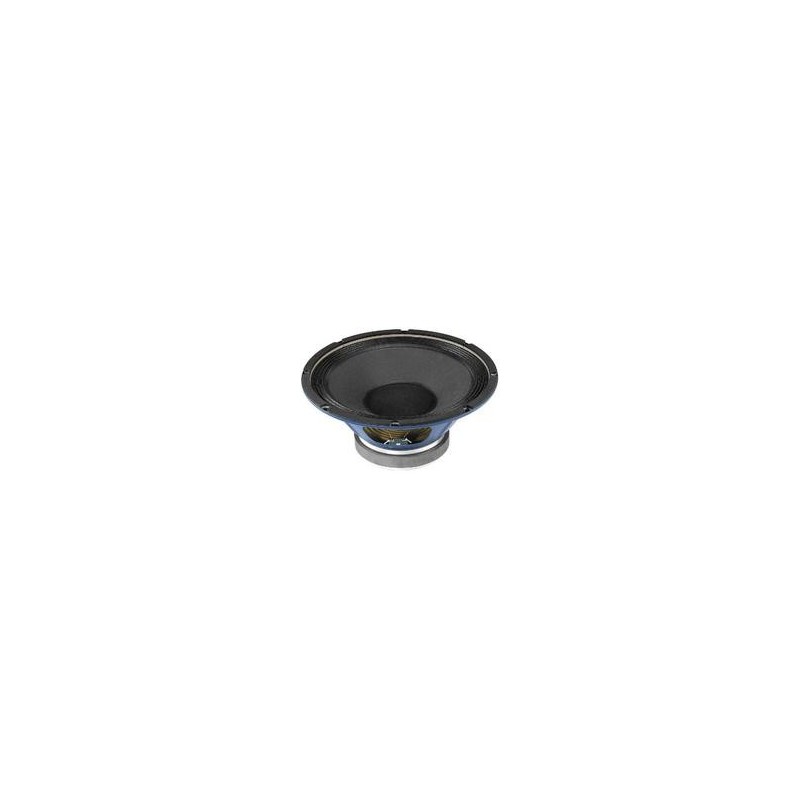

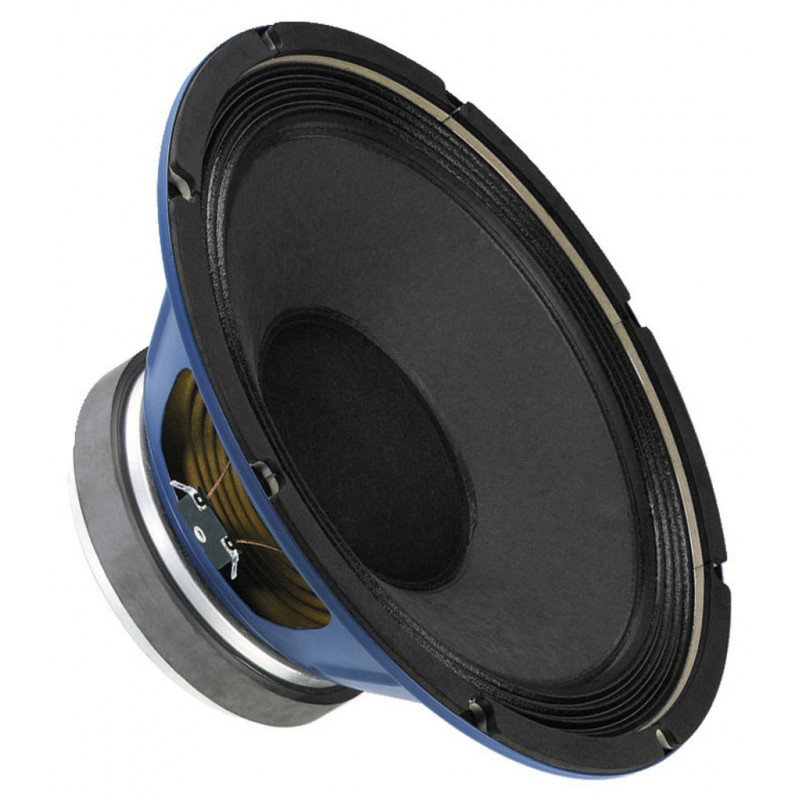

Difuzor bass-medii Monacor SP-30/200PA
[0103350]

ID: 45932

Garantie: 24 luni

Transport gratuit

Difuzor bass-medii Monacor SP-30/200PA

394,33 lei  inclusiv tva

  Cere pret special!

  Cere pret special!

Adăugaţi la lista dorinţelor



Informatii

PA bass-midrange speaker, 200 W, 8 Ω
  • For a deep low limit frequency
  • For bass-midrange applications and monitoring in bass-reflex cabinets of medium size

Technical Specifications

SP-30/200PA

Impedance (Z) 8 Ω

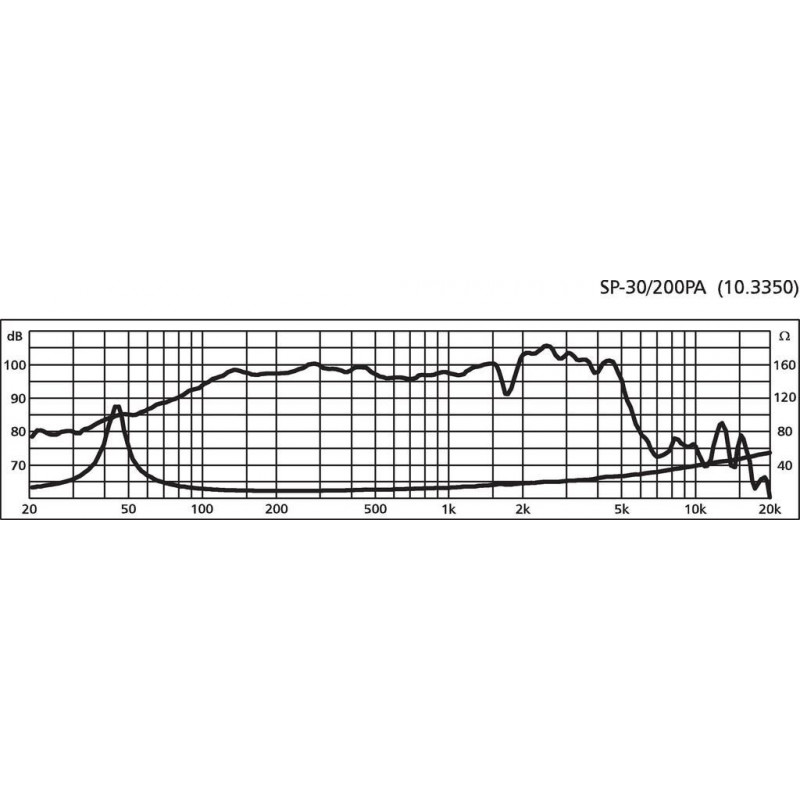

Frequency range f3-4,500 Hz
Resonant frequency (fs) 44 Hz
Power rating (RMS) 200 W
Peak music power output (MAX) 400 W
Sensitivity 97 dB/W/m
Suspension compl. (Cms) 0.29 mm/N
Moving mass (Mms) 44 g
Mech. Q factor (Qms) 6.71
Electr. Q factor (Qes) 0.41
Total Q factor (Qts) 0.39
Equivalent volume (Vas) 120 l
DC resistance (Re) 6.5 Ω
Force factor (BxL) 13.90 Tm
Voice coil induct. (Le) 0.9 mH
Voice coil diameter Ø 51 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 2.5 mm
Eff. cone area (Sd) 540 cm2
Magnet weight 1.3 kg
Magnet diameter Ø 156 mm

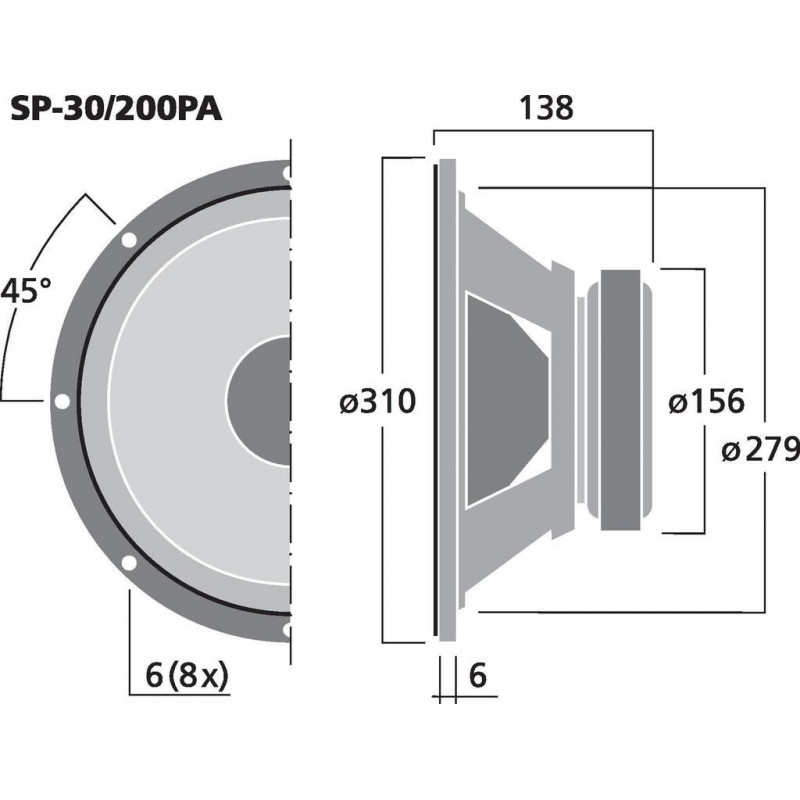

Mounting cutout Ø 279 mm
Mounting depth 132 mm
Dimensions Ø 310 mm x 138 mm
Outside diameter Ø 310 mm
Width Ø 310 mm
Depth 138 mm
Admiss. ambient temp. 0-40 °C
Weight 4.32 kg
Packing unit 1
Type of speaker 12"
Low-impedance 1

Data sheet

Diametru (inch) 12
Putere maxima (W) 400
Putere garantata (W) 200
Raspuns in frecventa (Hz) 30-4500
Sensibilitate (dB) 97
Impedanta (Ohm) 8
Dimensiune (mm) 310 mm x 138
Greutate (Kg) 4.320
Unitate vanzare Bucata
