Receptor multifrecventa cu 4 canale UHF JTS R-4/5

ID: 45623

Garantie: 24 luni

Transport gratuit

3 669,48 lei  inclusiv tva

  Cere pret special!

  Cere pret special!

Adăugaţi la lista dorinţelor

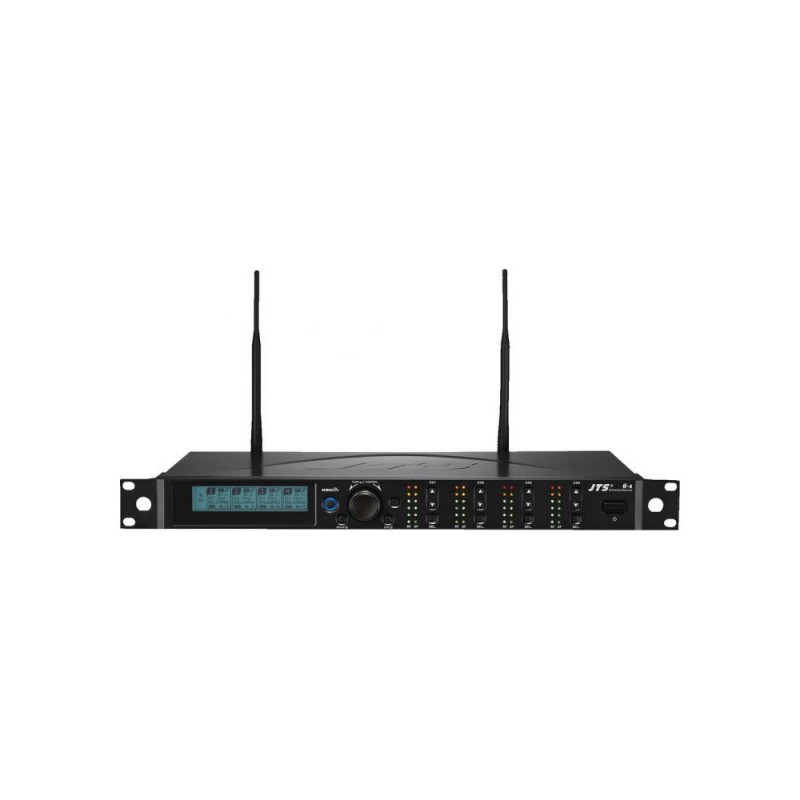

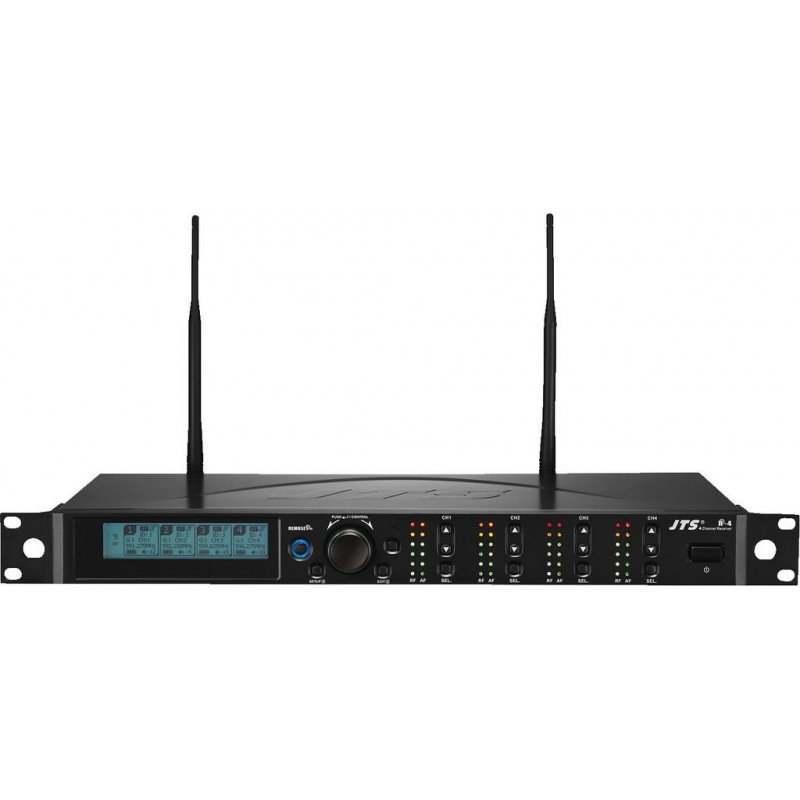

Receptor multifrecventa cu 4 canale UHF JTS R-4/5

4-channel diversity UHF PLL wideband receiver
  • Bandwidth: 36 MHz
  • 6 groups, each with up to 22 compatible preset channels
  • 1,441 selectable individual frequencies
  • RF output and mains voltage output for easily cascading up to 10 x R-4/5 receiver without additional splitter
  • REMOSET technology for receiver/transmitter synchronisation
  • Auto-scan function
  • Pilot tone squelch and noise mute
  • LED for indicating RF level and AF level
  • Backlit display for indicating battery status of the transmitter, frequency setup, active antenna
  • XLR output per channel, bal.
  • XLR output and 6.3 mm output for mixed signal
  • Switchable mic/line for single outputs and mixed outputs
  • Metal housing
Description wireless receiver
Carrier frequency range 506-542 MHz
Audio frequency range 50-18,000 Hz
Channels 4
THD < 0.6%
Dynamic range > 105 dB
Admiss. ambient temp. 0-40 °C
Audio signal receiver 630 mV/600 Ω XLR (line),

63 mV/600 Ω XLR (mic),

320 mV/600 Ω jack

Power supply receiver ˜ 100-240 V/50-60 Hz
Width receiver 485 mm
Height receiver 44 mm
Depth receiver 230 mm
Weight receiver 2.65 kg
Connections receiver 4 x XLR, bal.,

1 x XLR, bal.,1 x 6.3 mm jack (mixed out)
