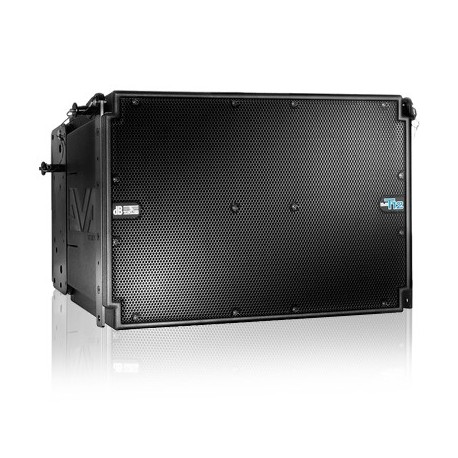

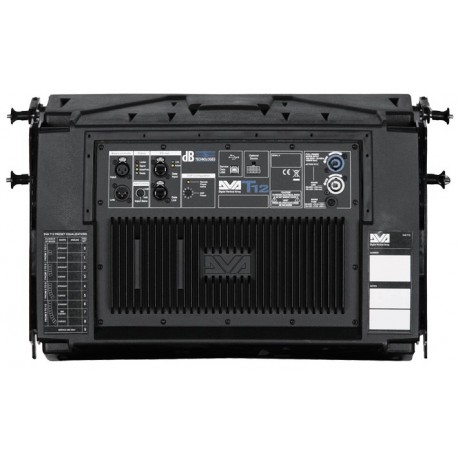

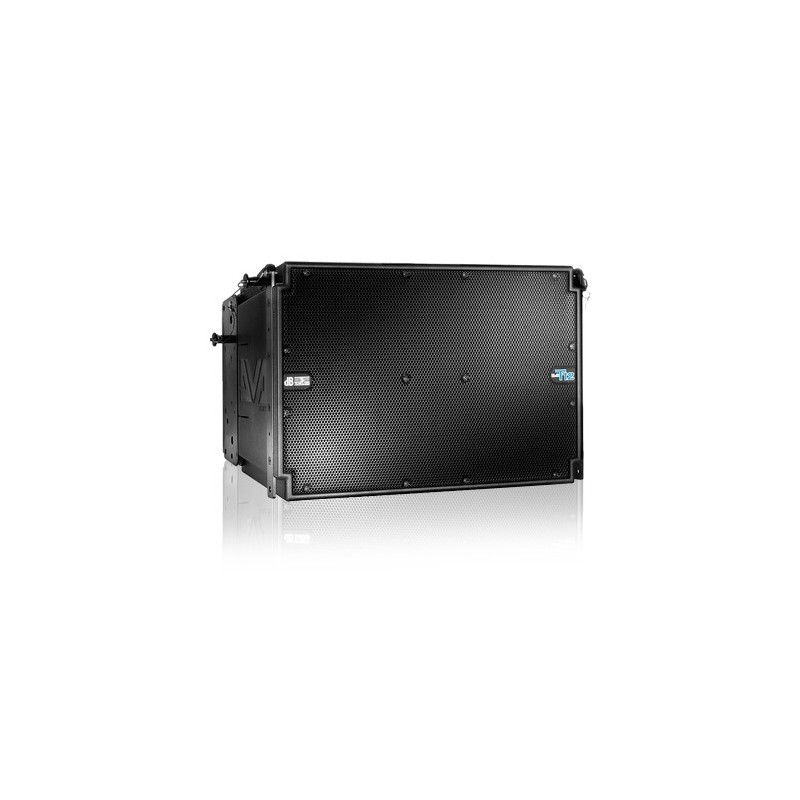

Boxa activa tip line array DB Technologies DVA T12
  • Boxa activa tip line array DB Technologies DVA T12
  • Boxa activa tip line array DB Technologies DVA T12
  • Boxa activa tip line array DB Technologies DVA T12

Boxa activa tip line array DB Technologies DVA T12

Referinta: A05DBT003

ID: 31341

DB Technologies
17.944,61 lei
Include TVA
Cantitate
favorite_border

Mail Trimis
Mail netrimis

Cere pret special! Click aici!

Ai gasit acest produs mai ieftin in alta parte? Click aici!



Consultanta profesionista - peste 15 ani experienta



Livrare Rapida



Garantie 2 ani



Drept retur 14 zile



Transport gratuit la comenzi peste 299 lei

Boxa activa tip line array DB Technologies DVA T12.

Technical Data
Speaker Type: 3-Way Active Line Array Module
Acoustical data
Frequency Response [+/- 3dB]: 60 - 19.000 Hz
Max SPL: One Unit: 136 dB
HF: 3x1 "
Voice Coil HF: 1.4 "
Directivity: 100x10 ° Single unit
Horn: Integrated CD Horn
MF: 2x 6.5 "
Type MF: Neodymium Sealed Basket Phase Plug Horn Loaded
Voice Coil MF: 2 "
LF: 12 "
Type LF: Neodymium
Voice Coil LF: 3 "
Amplifier
Amp Technology: Digipro® G2
Amp Class: Class D
HF Amp: 350 W RMS
MF Amp: 350 W RMS
LF Amp: 710 W RMS
Cooling: Convection
Processor
Controller: DSP 56 bit
AD/DA Converter: 24 bit/96 kHz
System Presets: 8, HF/Low-mid correction
Limiter: Dual Active Limiter Multiband RMS, Peak, Thermal
Crossover Frequency MF-HF: 1800 Hz
Slope MF-HF: 24 dB/Octave
Crossover Frequency LF-MF: 420 Hz
Slope LF-MF: 24 dB/Octave
Input
Signal Input: 1x XLR fem, Bal.
Signal Output: 1x XLR male, Bal.
Network: RDnet remote control RJ45 connector IN/OUT
Power Socket: 1x Powercon In 1x Powercon Out
Voltage Range: 90 - 240 V
Mechanics
Housing: Polypropylen PP Aluminium reinforced
Housing Design: Trapezoidal 10°
Rain Cover: Included
Rigging Points: Integrated rigging hardware
Width: 580 mm (23.2 in)
Height: 386 mm (15.44 in)
Depth: 430 mm (17.2 in)
Weight: 29,9 kg (63.93 lbs)


Numar cai : 3
Putere garantata (W) : 1410
Raspuns in frecventa (Hz) : 60-19000
Sensibilitate (dB) : 136
Dimensiune (mm) : 386 x 580 x 430
Greutate (kg) : 29.9
Unitate vinzare : buc

Manual PDFManual PDF

Raspuns in frecventa (Hz)
60.00
Sensibilitate (dB)
136.00
Putere garantata (W)
1410.00
Dimensiuni (mm)
386.00
