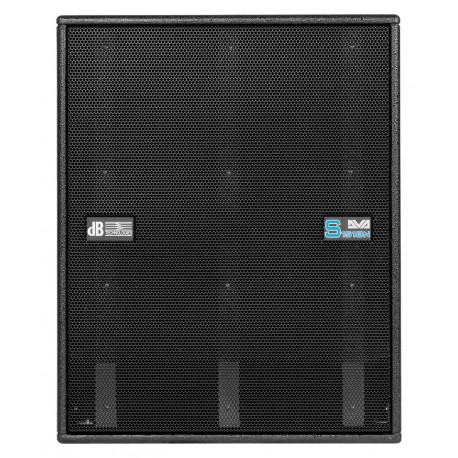

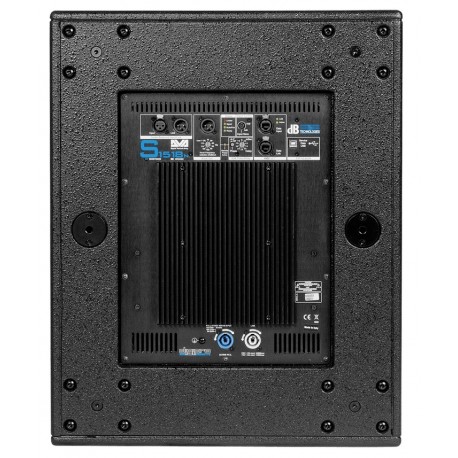

Subwoofer activ tip line array DB Technologies DVA S1521N

Subwoofer activ tip line array DB Technologies DVA S1521N

Referinta: A05DBT014

ID: 31950

0
DB Technologies

16 493,00 lei  inclusiv tva

Mail Trimis
Mail netrimis
Cere pret special!   Ai gasit acest produs mai ieftin in alta parte? Click aici!
  • Consultanta profesionista - peste 15 ani experienta
  • Livrare Rapida
  • Garantie 2 ani
  • Drept retur 14 zile
  • Transport gratuit

Informatii
Data sheet
Recenzii

Informatii

Subwoofer activ tip line array DB Technologies DVA S1521N.

Technical Data
Speaker Type: Active Bandpass Subwoofer
Acoustical data
Frequency Response [+/- 3dB]: 39 - 120 Hz
Max SPL: 138 dB
Directivity: Omnidirectional, Cardiod Option with DSP setup
LF: 18 "
Voice Coil LF: 4 "
Amplifier
Amp Technology: Digipro® G2
Amp Class: Class D
Power Supply: 1.5 kW SMPS
LF Amp: 1500 W RMS
Cooling: Convection
Processor
Controller: DSP 56 bit
AD/DA Converter: 24bit/ 96 kHz
System Presets: X-Over,Delay
Phase: 0, 180 °
Limiter: RMS, Peak, Thermal
Delay Option: 0-4.5 ms internal
Crossover Frequency LF-MF: 75-120Hz | steps of 5Hz
LF-Xover out slope: 24 dB/Octave
Input
Mechanics
Housing: Multiplex birch plywood
Housing Design: Rectangular
Handles: 3x Per Side
Accessory: Dolly, Wheels 100mm, Dust Cover, Rain Cover
Pole Mount: M20
Rigging Points: integrated for SRK10 fly kit 2xPick Points on top to fix DRK10/20 rigging frames
Width: 515 mm (20.6 in)
Height: 640 mm (25.6 in)
Depth: 720 mm (28.8 in)
Weight: 46 kg (101.41 lbs)


Putere amplificator (W) : 1500
Raspuns in frecventa (Hz) : 39-120
Dimensiune (mm) : 580x800x720
Greutate (kg) : 52.5
Unitate vinzare : buc

Manual PDFManual PDF

Data sheet

Raspuns in frecventa (Hz)39.00
Putere amplificator (W)1500.00
Dimensiune (mm)580.00
