Subwoofer activ tip line array DB Technologies DVA S30N

Subwoofer activ tip line array DB Technologies DVA S30N

Referinta: A05DBT004

ID: 31342

0
DB Technologies

20 992,00 lei  inclusiv tva

Mail Trimis
Mail netrimis
Cere pret special!   Ai gasit acest produs mai ieftin in alta parte? Click aici!
  • Consultanta profesionista - peste 15 ani experienta
  • Livrare Rapida
  • Garantie 2 ani
  • Drept retur 14 zile
  • Transport gratuit

Informatii
Data sheet
Recenzii

Informatii

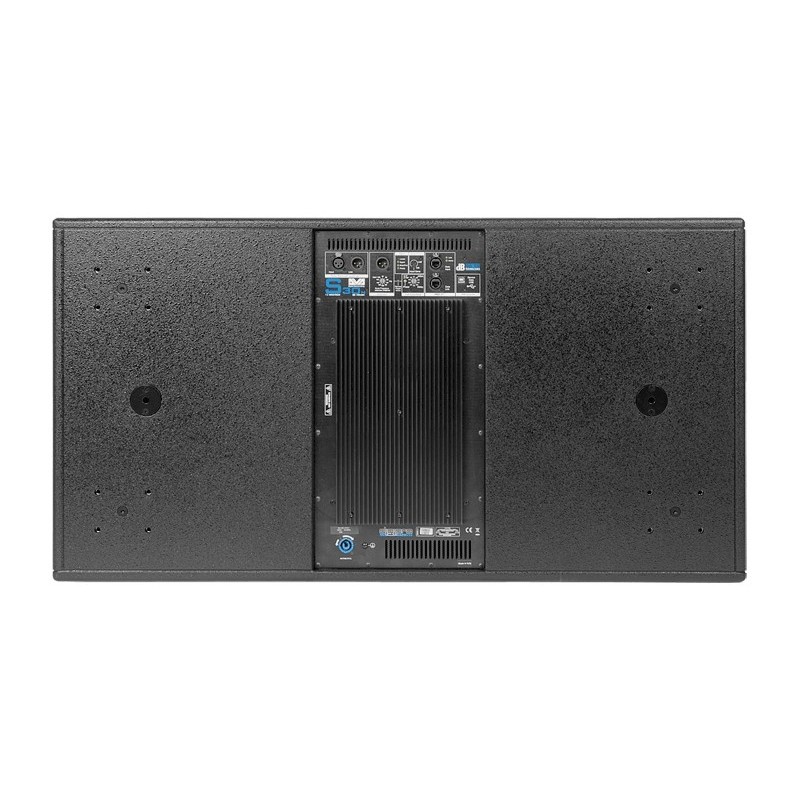

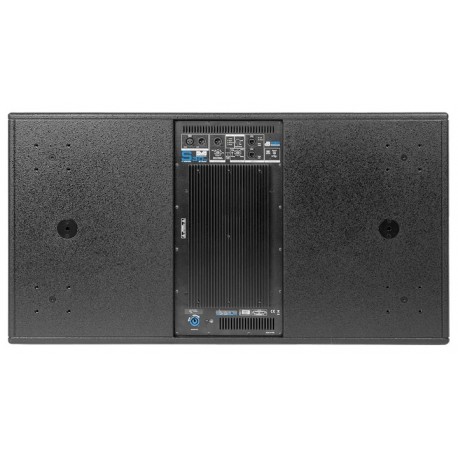

Subwoofer activ tip line array DB Technologies DVA S30N.

Technical Data
Speaker Type: Active Bassreflex-Horn Subwoofer
Acoustical data
Frequency Response [+/- 3dB]: 30 - 120 Hz
Max SPL: 141 dB
Directivity: Omnidirectional, Cardiod Option with DSP setup
LF: 2x18 "
Voice Coil LF: 4 "
Amplifier
Amp Technology: Digipro® G2
Amp Class: Class D
Power Supply: 3 kW SMPS
LF Amp: 3000 W RMS
Cooling: Convection
Processor
Controller: DSP 56 bit
AD/DA Converter: DSP 24 bit/48 kHz
System Presets: X-Over,Delay
Phase: 0, 180 °
Limiter: RMS, Peak, Thermal
Delay Option: 0-4.5 ms internal
Crossover Frequency LF-MF: 75-120Hz | steps of 5Hz
LF-Xover out slope: 24 dB/Octave
Input
Mechanics
Housing: Multiplex birch plywood
Housing Design: Rectangular
Handles: 4x Per Side
Accessory: Dolly, Wheels 100mm, Dust Cover, Rain Cover
Rigging Points: 2xPick Points on top to fix DRK10/20 rigging frames
Width: 1100 mm (44 in)
Height: 580 mm (23.2 in)
Depth: 720 mm (28.8 in)
Weight: 83 kg (182.98 lbs)


Putere garantata (W) : 3000
Raspuns in frecventa (Hz) : 30-120
Sensibilitate (dB) : 141
Dimensiune (mm) : 580 x 1100 x 720
Greutate (kg) : 83
Unitate vinzare : buc

Manual PDFManual PDF

Data sheet

Raspuns in frecventa (Hz)30.00
Sensibilitate (dB)141.00
Putere garantata (W)3000.00
Dimensiune (mm)580.00
